Arrowquip 710 head semi-permanent graziers yard

A well-designed sheep yard should allow you to process and sort your sheep easily, without causing stress on your sheep or backaches for you. The requirements of every property and operation are different, and therefore you must consider every angle when designing your yards. Whether you are working with existing structures and shearing sheds or starting from scratch on your property, talk to us about the variety of options to create your ideal sheep yard.

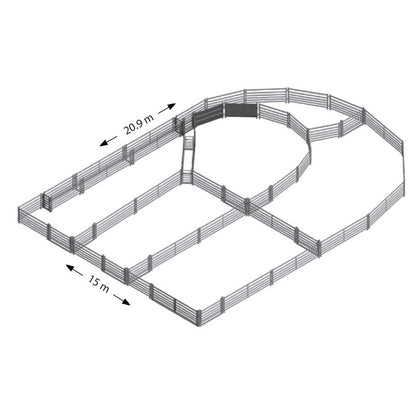

The 710 semi-permanent sheep yard is the best value for money per square metre of yard. The bugle design allows sheep to flow easily, and a sort gate directs the sheep either into the drenching race or three-way draft. It features:

  • Three-way draft
  • Bugle design for efficient sheep flow
  • Single drench race
  • 6 pens
  • Lug & pin system ensures quick installation
  • Freedom to add to your stockyard system at any time, or move the yard to a new property
  • The modular system allows you to make changes and additions to your yard, as necessary
  • Oval rails prevent bruising
  • Feet are secured to the ground with pins (optional)

Arrowquip range of sheep yards are customisable and are finished in three styles; Master, Pro and Elite.

The Master sets the gold-standard and consists of:

  • Australian Made medium to high tensile steel (350-450 MPa)
  • Pre-galvanised (200 gm/sqm)
  • Top rail 64mm x 44mm
  • 5 lower rails 53mm x 35mm
  • Spring-loaded gate latches on all internal gates.

The Pro consists of:

  • Australian Made medium to high tensile steel (350-450 MPa)
  • Pre-galvanised (200 gm/sqm)
  • Visual block of 18%
  • Top rail 53mm x  35mm
  • 5 lower rails of 25 NB pipe
  • Spring-loaded gate latches on all internal gates.

The Elite Range consists of:

  • High quality imported low/medium tensile steel (100 MPa)
  • Pre-galvanised (55 gm/sqm)
  • Visual block of 28%
  • 60mm x 30mm oval rail

A permanent option is also available
